Hertz HCP 4D
299.99

Hertz HCP 4D
D-CLASS FOUR CHANNEL AMPLIFIER

Details

HCP 4D is a D Class car audio amplifier, able to offer up to 1160W (RMS); it is the ideal choice for those who want high power levels in complex systems. Extremely versatile, complete in its functions, provided with Speaker-In and RCA-In inputs to work with any head units, it has been designed to work also in mono (selectable mode), for a three-channel system with sub and front, or a powerful two-channels system.
All the Hertz Compact Power amplifiers are assembled with high-quality components and feature a complete and by-passable crossover system. The dissipation system is optimized with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier.

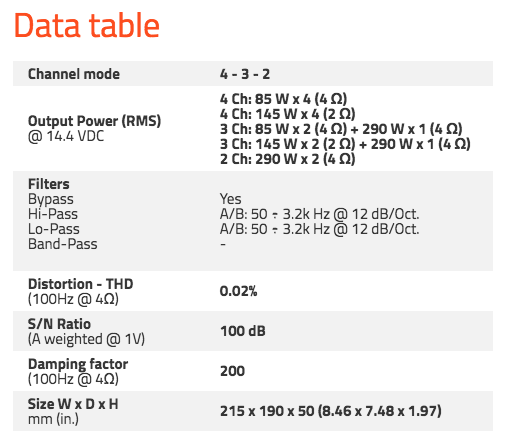

Screen Shot 2018-01-24 at 11.58.56 AM.png

Input / Output


Technologies


REFINED HEATSINK WITH HIGH CONVECTION CAPABILITY

The extruded aluminum heatsink provides high efficiency thermal performance; using the top side of the heatsink to effectively dissipate the heat generated by the electronic components. The internal temperature remains constant at all power levels.

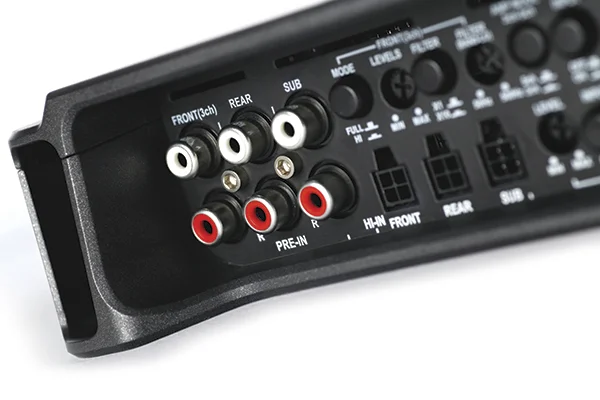

COMPLETED FILTER SECTION

Large array of filters customized for each model, to achieve maximum versatility: Lo-Pass, Hi-Pass, Band-Pass, Full Range, Subsonic, Bass Boost, Phase and Mono. Filtered pre-amplified outputs along with multiple adjustments are featured on the HCP 1D, offering the user endless connection possibilities with any source.

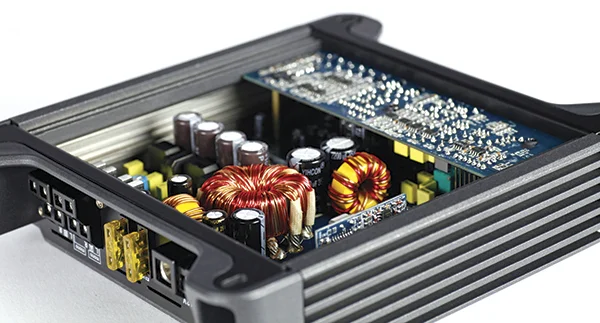

HCP ELECTRONICS

Special balanced input circuitry rejects electro-magnetic disturbances present on the Pre-amplified or Speaker level inputs. Power supply stage features a multiple winding transformer and Low-ESR 105°C capacitors, selected to ensure high efficiency and current capability.


ADVANCED HEATSINK

The heatsink boasts extremely efficient thermal conductivity, combined with exclusive cosmetics: scratch-resistant finish, end caps shaped for easy handling, control panel accessible from the top as well as a featured back lit Hertz logo which can also be rotated.
